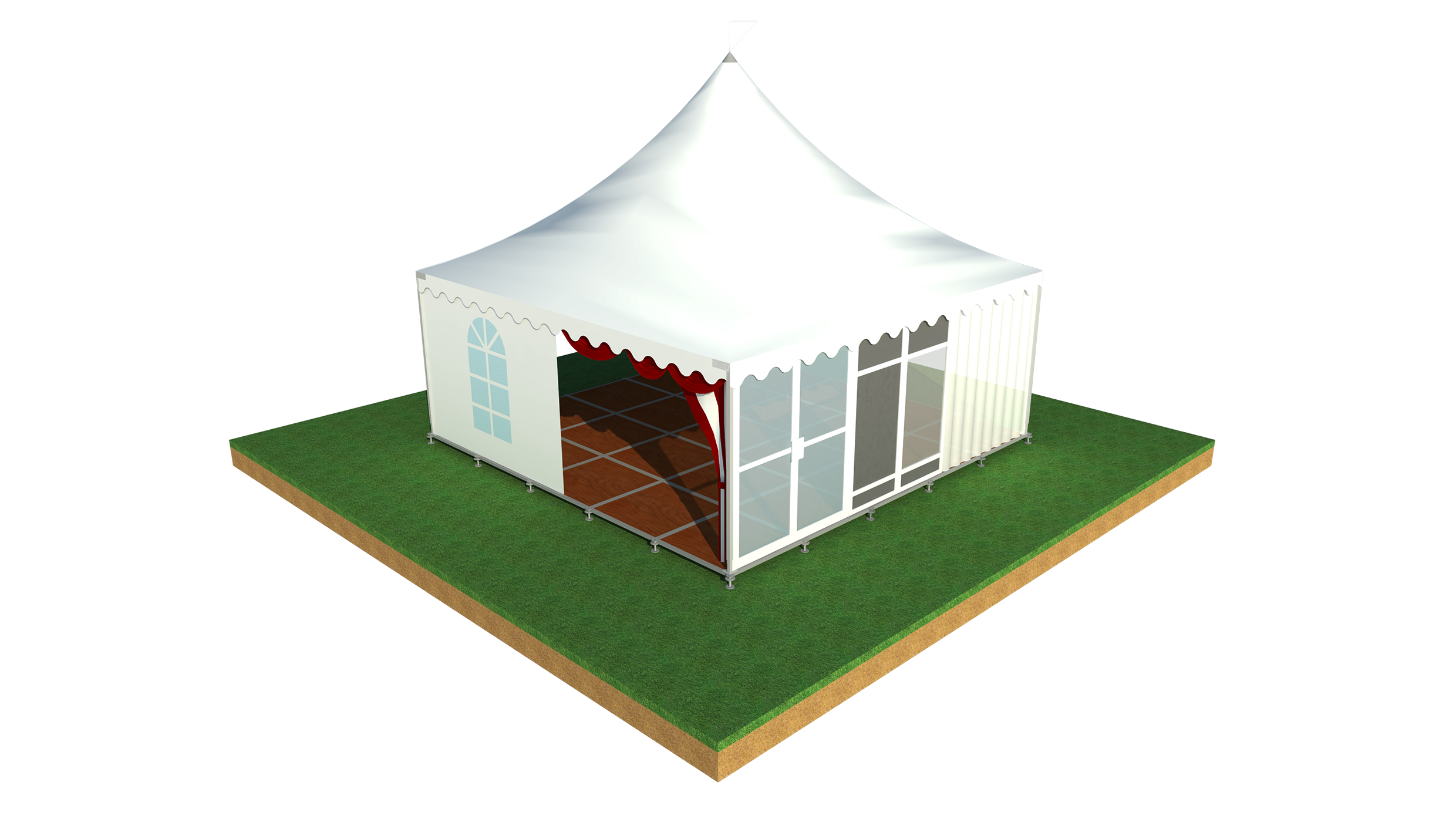

TEGUH® Arabian Tent (Tension Tent TK2)
The TEGUH® Arabian Tent, also known as the Tension Tent TK2, is a remarkable addition to any event, offering a unique combination of aesthetics and durability. This canopy stands out with its visually appealing design and functional features. Crafted as an improved rendition of the traditional Arabian Tent, it has been engineered for both elegance and strength.
Tent Cover Material Quality
The canopy’s cover material is a key element of its construction. It is made from HANA Brand PVC-laminated Polyester Textile or PVC-coated Polyester Textile, both sourced from Korea, known for their quality and resilience. The weight of the cover material can range from 470 gsm to 580 gsm, providing options to suit different preferences. The material undergoes essential treatments such as UV resistance, anti-mildew properties, and flame retardancy, tailored to the specific cover material chosen. Additionally, warranties, lasting up to 5 years depending on the brand and specifications, underscore the material’s longevity.
Tailoring to Event Needs: Customisation and Versatility
To further enhance the versatility and aesthetics of the TEGUH® Arabian Tent, a range of optional sidewalls is available. These include canvas sidewalls with optional French Windows, PVC solid board panels, glass panels, printed canvas sidewalls, and single or double aluminium doors, allowing customization to meet various event needs.
In terms of its structural integrity, the framework of the tent is composed of hot-dipped galvanized steel, known for its corrosion resistance and strength. All connection accessories also utilize hot-dipped galvanized steel, ensuring reliable assembly. The mainframe profile measures 75mm x 38mm x 1.6mm RHS, providing stability and support, while the main column profile stands at 50mm x 50mm x 1.6mm with a height of 1800mm, contributing both to the tent’s structural integrity and its overall visual appeal.
TEGUH® Arabian Tent: Blending Aesthetics and Durability
In conclusion, the TEGUH® Arabian Tent is not only a striking visual centrepiece for events but also a robust and reliable structure, thanks to its carefully chosen cover materials and sturdy framework. With the flexibility offered by various sidewall options and the assurance of warranties, it stands as an ideal choice for a wide range of events and occasions.
3M X 3M
Size & Weight
- Width (A): 3m
- Length (B): 3m
- Eave Height (D): 1.8m to 3m
- Roof Height (C): 1.7m
- Weight: 113.7kg
- Main Beam Profile: 38mm x 75mm x 1.6mm
Capacity
- Sitting : 60 pax/bay
- Round Tables : 10 units/bay
Engineering
- Max. Allow Wind Speed : 80km/hour
3M X 6M
Size & Weight
- Width (A): 3m
- Length (B): 6m
- Eave Height (D): 1.8m to 3m
- Roof Height (C): 2.4m
- Weight: 129.4kg
- Main Beam Profile: 38mm x 75mm x 1.6mm
Capacity
- Sitting : 60 pax/bay
- Round Tables : 10 units/bay
Engineering
- Max. Allow Wind Speed : 80km/hour
5M X 6M
Size & Weight
- Width (A): 5m
- Length (B): 6m
- Eave Height (D): 1.8m to 3m
- Roof Height (C): 2.5m
- Weight: 147kg
- Main Beam Profile: 38mm x 75mm x 1.6mm
Capacity
- Sitting : 60 pax/bay
- Round Tables : 10 units/bay
Engineering
- Max. Allow Wind Speed : 80km/hour
6M X 6M
Size & Weight
- Width (A): 6m
- Length (B): 6m
- Eave Height (D): 1.8m to 3m
- Roof Height (C): 2.4m
- Weight: 154.8kg
- Main Beam Profile: 38mm x 75mm x 1.6mm
Capacity
- Sitting : 60 pax/bay
- Round Tables : 10 units/bay
Engineering
- Max. Allow Wind Speed : 80km/hour
6M X 9M
Size & Weight
- Width (A): 6m
- Length (B): 9m
- Eave Height (D): 1.8m to 3m
- Roof Height (C): 2.9m
- Weight: 192kg
- Main Beam Profile: 38mm x 75mm x 1.6mm
Capacity
- Sitting : 60 pax/bay
- Round Tables : 10 units/bay
Engineering
- Max. Allow Wind Speed : 80km/hour
Cover Material:
- Base fabric : HANA Brand PVC-laminated Polyester Textile / PVC-coated Polyester Textile (Made in Korea)
- Weight : 470gsm - 580gsm according to different brand
- Surface Treatment : UV treated, anti-mildew, flame retardant (according to different specification of cover materials)
- Warranty : Up to 5 years according to different brands
- Optional side walls : Canvas Sidewall / Optional come with French Window, Optional PVC solid board panel, Optional glass panel, Optional printed canvas sidewall, Optional single and double aluminium door
Material Specifications:
- Framework: Hot-dipped galvanised steel
- Connection Accessories: Hot-dipped galvanised steel
- Mainframe profile: 75mm x 38mm x 1.6mm RHS
- Main Column Profile: 50mm x 50mm x 1.6mm x 1800mm
