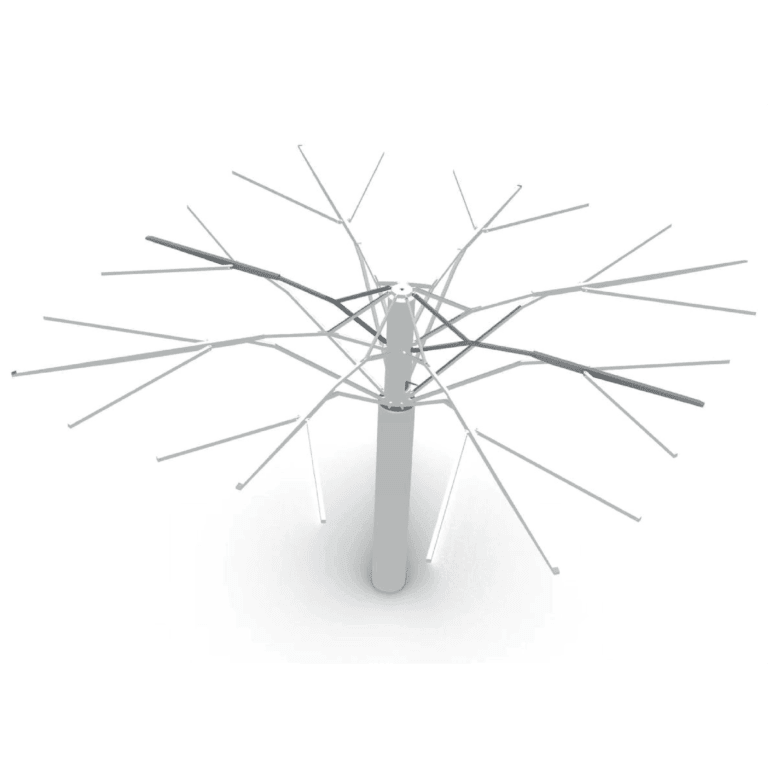

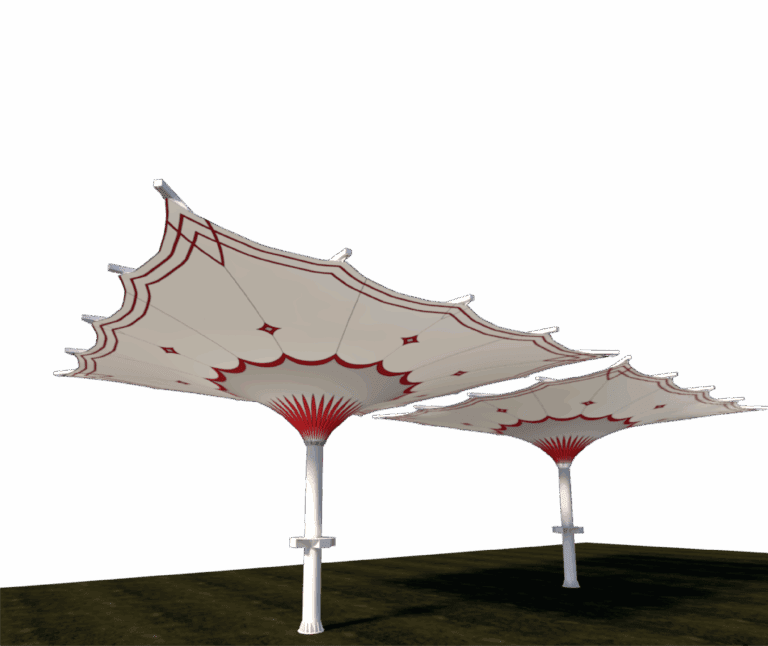

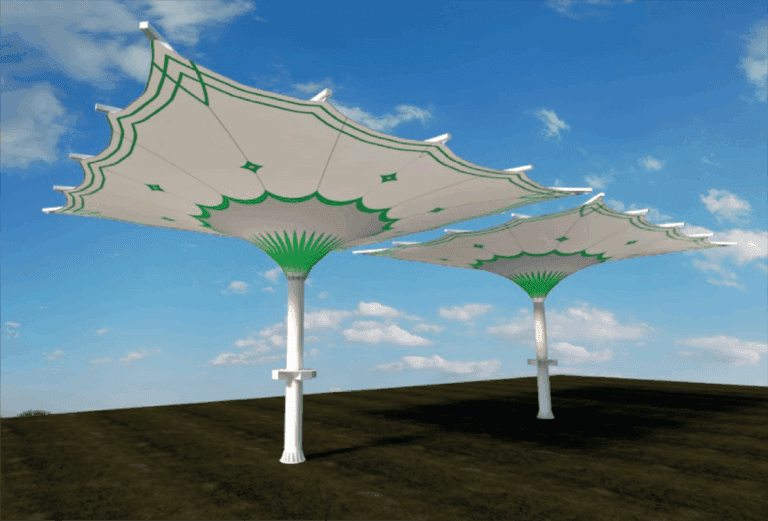

The retractable umbrellas are parasols designed with a motorised mechanism system that can withstand wind speeds up to 110km/h, and a drainage system suitable for various weather conditions globally.
The parasol cover material is made of waterproof PVC-coated polyester textile, offering high UV protection. Additionally, there is an option for printing upon request.
A power supply of 240VAC/415VAC is required, depending on size of the structure.
|

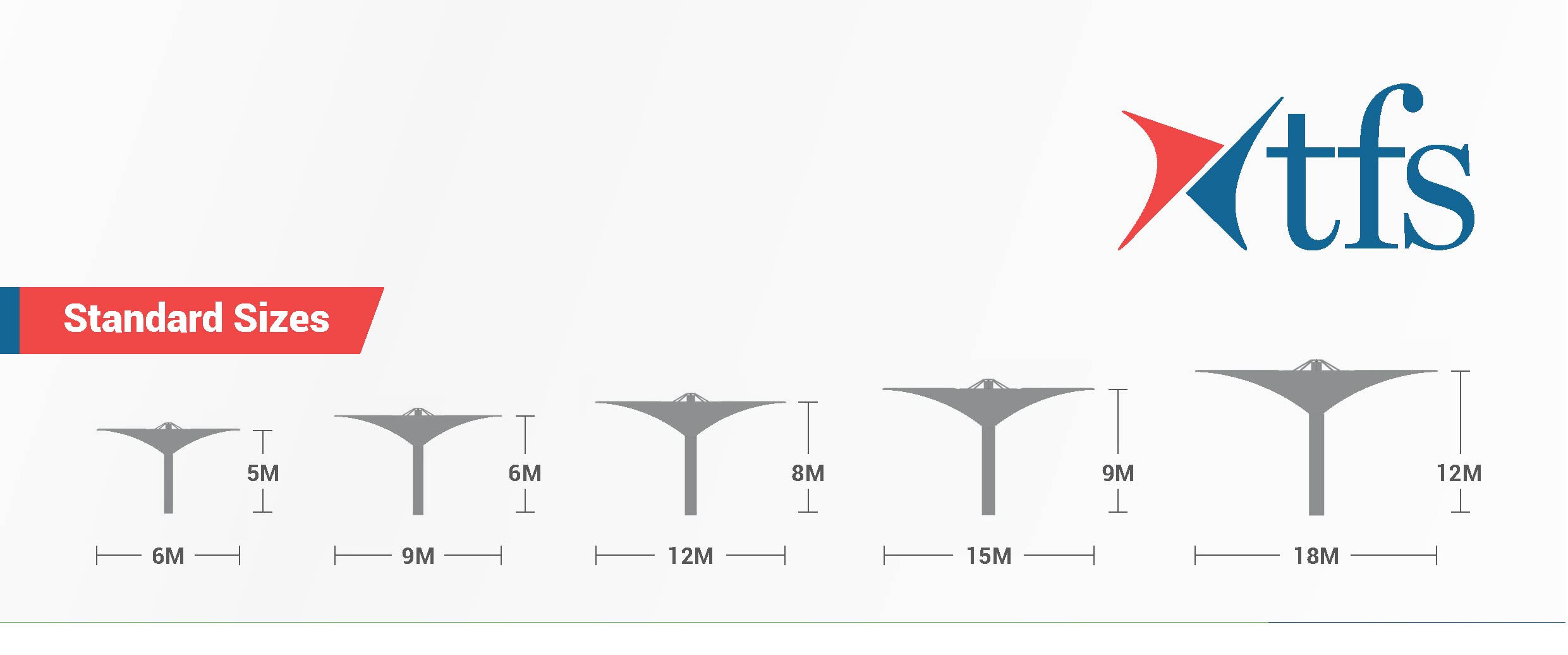

Product code
|
Size in meters
|
Width (W) mm
|
Height (H1) mm
|
Height (H2) mm
|
|---|---|---|---|---|
|
LO30
|
3M x 3M
|
3000
|
2200
|
3100
|
|
LO40
|
4M x 4M
|
4000
|
2200
|
3300
|
|
LO50
|
5M x 5M
|
5000
|
2200
|
3900
|
|
LO60
|
6M x 6M
|
6000
|
2400
|
4675
|
Membranes | PVC coated polyester 1100dtex with weldable PVDF top coating, UV resistance, anti-wicking, fungus resistance, waterproof, fire retardant meets NFPA-701, ASTM-E84, CSFM, AS1530 |

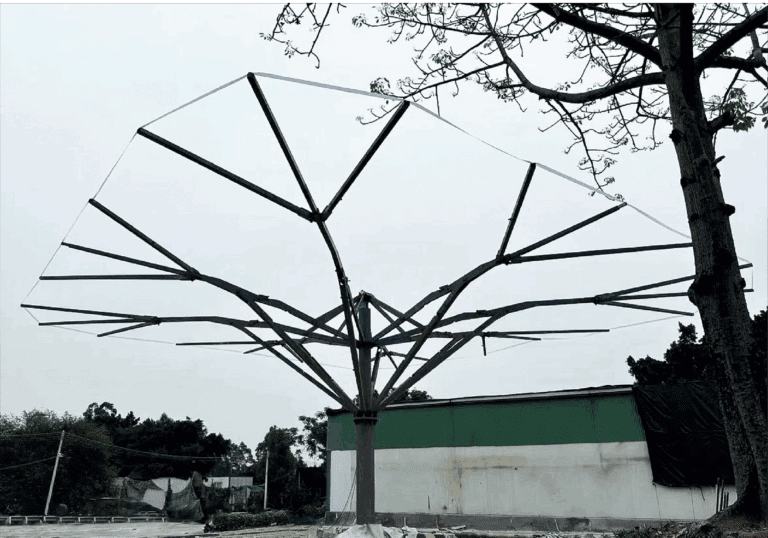

Structures | Galvanised tubular mild steel completed with epoxy finished / powder coated in compliance with BS 5950 |
Accessories | Grade 316 stainless steel wire rope cables, rigging screws, pole sleeve, shackles, turn buckles, bolts and nuts |
Waranty | Up to 10 years warranty from membrane manufacturer |
Foundation | Foundation for tensile structure is designed in compliance with BS 8004 and foundation advise provided according to site conditions |
Design Windspeed | 33m/s or 120km/h (BS Standard) |
