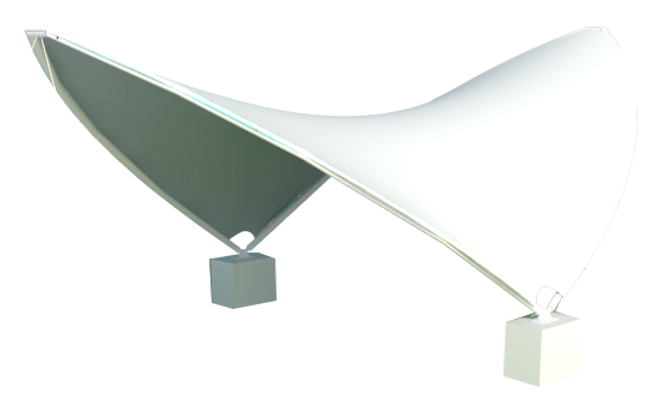

ACOUSTAGE TENT
Optimise Your Spectacular Show
Acoustage™ is one of the signature product from TEGUH that is designed to provide the aesthetic staging, lighting, and acoustical effects for all musical events.
It is designed to give the perfect acoustical performance for your show.
Product Details
General Specifications
Explore More
Product Details
Acoustage 6m x 8m
Acoustage 10m x 15m
Acoustage 12m x 18m
Acoustage 20m x 21m
Acoustage 6m x 8m
Acoustage 6m
Size & Weight
- Cover Area : 390sq.ft
- Clearance height : 2.50m
- Peak height : 3.10m
Capacity
- Standing : 50 pax
Assembly
- Assembly Time : 2 hours (4 crews)
Acoustage 10m x 15m
Acoustage 10m
Size & Weight
- Cover Area : 1,200sq.ft
- Clearance height : 4.65m
- Peak height : 5.70m
Capacity
- Standing : 180 pax
Assembly
- Assembly Time : 4 hours (6 crews)

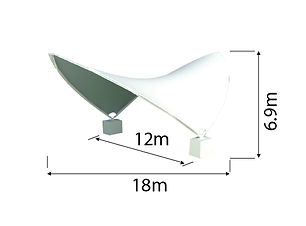

Acoustage 12m x 18m
Acoustage 12m
Size & Weight
- Cover Area : 1,880sq.ft
- Clearance height : 5.45m
- Peak height : 6.90m
Capacity
- Standing : 250 pax
Assembly
- Assembly Time : 4 hours (6 crews)
Acoustage 20m x 21m
Acoustage 20m
Size & Weight
- Cover Area : 3,770sq.ft
- Clearance height : 6.70m
- Peak height : 7.65m
Capacity
- Standing : 280 pax
Assembly
- Assembly Time : 8 hours (6 crews)
General Specifications
Cover Material:
- Anti mildew
- PVC-coated polyester textile
- Anti wicking
- UV Resistant
- Both side treated with acrylic lacquer
- Translucent & opaque supply
- Flame retardant
- Weight : 650gsm – 900gsm according to different brand
- Warranty : Up to 10 years according to different brand
Material Specifications:
- Frame Work : Hard pressed extruded anodised aluminium 6061/T6 / Epoxy aluminium truss frame aluminium 6061/T6
- Connection Accessories : Hot-dipped galvanised steel
Design Wind Speed:
- Speed: 80km/h
